Energy-efficient refrigeration vehicles utilizing Phase Change Material (PCM) technology.
PCM Smart Refrigerated Truck Types (1-Ton)
1-Ton A
1-Ton B

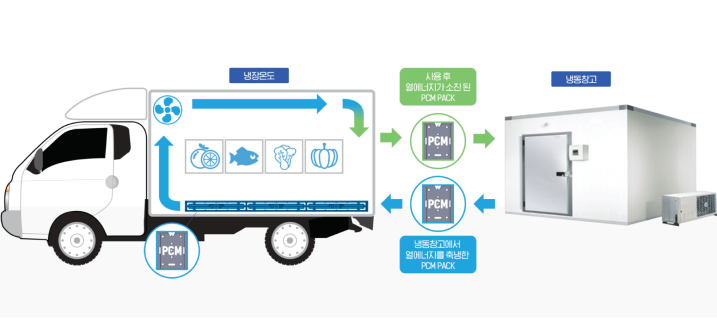

PCM Pack – Underbody Mounted Type

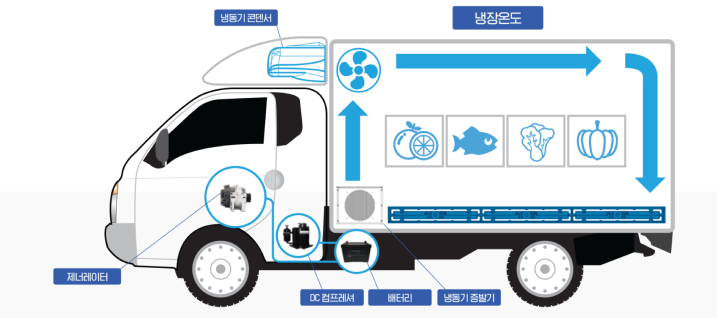

Hybrid Type
A PCM pack (−21°C) that stores high-density thermal energy is
installed under the vehicle.
The DC compressor is powered by the vehicle battery while driving.
Air is circulated to maintain a refrigeration temperature of 3–5°C,
depending on the type of fresh food being transported.
Cooling energy is stored in the PCM pack installed under the vehicle.
1-Ton Refrigerated Vehicle
Specifications & Performance Comparison
Item
Conventional 1-Ton Refrigerated Vehicle
DSV PCM Refrigerated Vehicle
Remarks
PCM Pack
Underbody Mounted
Hybrid
Vehicle Weight
(kg)
3,250
3,470
3,340
Panel Thickness
(t:mm)
40 (Hyundai OEM standard)
70
70
Time to Reach
Set Temperature
More than 30 min
10 min
10 min
Based on 5°C
Driver’s Cabin
A/C Operation
Performance decreases
Cool & stable
Cool & stable
Engine Performance
When A/C Operates
Performance decreases
No impact
No impact
Fuel Efficiency
(%)
-
20% ↑
20% ↑
Compared to conventional engine-driven refrigeration system
ICE Pack
Capacity
-
110 ℓ
110 ℓ
Operating Time
per Single Charge
-
More than 5 hours
-
Reduced time to reach set temperature at 5°C
(More than 30 minutes → 10 minutes)
20% improvement in fuel efficiency compared to conventional vehicles
PCM Smart Refrigerated Truck Types (2.5-Ton)
2.5-Ton

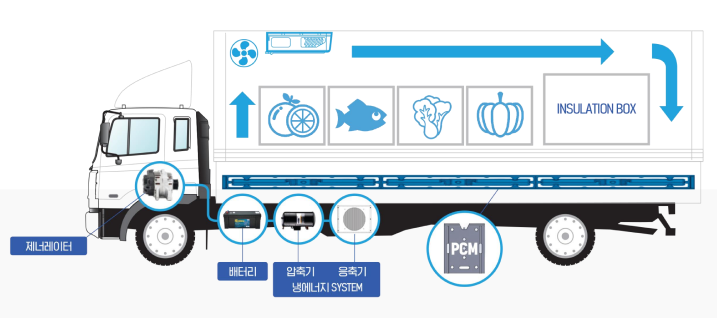

Thermal Storage Refrigerated Vehicle
During operation, refrigeration is provided using the thermal energy stored in the PCM.
Any insufficient cooling energy is supplemented using electricity generated by
the vehicle’s generator while driving to maintain the temperature.
2.5-Ton Refrigerated Vehicle Comparison
Item
Conventional
Refrigerated Vehicle
Thermal Storage
Refrigerated Vehicle
Remarks
Vehicle Weight
(kg)
4,050
4,710
Panel Thickness
(t:mm)
60
70
Time to Reach
Set Temperature
30 min or more
5 min
Based on 5°C
Driver’s Cabin
A/C Operation
No effect
Cool & stable
Engine Performance
When A/C Operates
Decrease
No impact
Fuel Efficiency
(%)
-
25% ↑
Compared to conventional engine- driven refrigeration system
ICE Pack
Capacity
-
300 ℓ
Operating Time
per Single Charge
-
5 hours
Reduced time to reach set temperature at 5°C
(30 minutes → 5 minutes)
25% improvement in fuel efficiency compared to conventional vehicles
PCM Smart Refrigerated Truck Advantages &
Field Performance Test
A comparative test was conducted using currently operating 1-ton logistics vehicles
(ICOOP standard delivery vehicle vs. PCM vehicle).
Through two rounds of testing (same driver assigned),
an approximate 20% improvement in fuel efficiency was directly confirmed.
Logistics Field Performance Test (DSV / ICOOP)
Research Title
ICOOP (Nature Dream) Logistics Field Test (Fuel Efficiency)
Research Organization
Conducted Internally
Result Announcement Period
September 15, 2015 – September 19, 2015
Test Conditions
Both the conventional refrigerated vehicle and the PCM refrigerated vehicle were loaded with identical products and identical weights, and deliveries (including café deliveries) were conducted under the same conditions to verify fuel efficiency improvement.
Category
PCM Method
Engine-Driven Method
PCM Method
Engine-Driven Method
Date of Operation
Sept. 17, 2015
Sept. 19, 2015
Distance Traveled (km)
95
143
Fuel Consumption (L)
8.9
11.9
16.6
24
Fuel Efficiency (km/L)
10.67
7.98
8.61
5.96
Approximately 20% Improvement in Fuel Efficiency Confirmed
