PRODUCTS

Anti-Drone

Defense Systems

Integrated vehicle-based systems for detecting, tracking,

and neutralizing unauthorized drones.

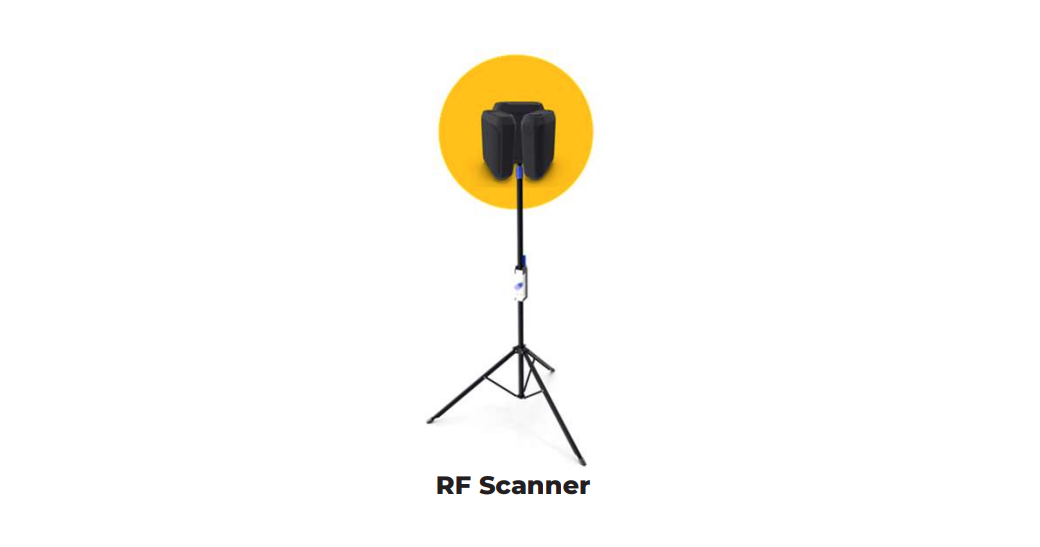

RF Scanner

Technical Specification
PARAMETER
PERFORMANCE
Detection frequency
2.4GHz/5.8GHz, 900MHz, 400MHz(optional)
Detection Range
5km >
Altitude Coverage
90°c
Azimuth Coverage
360°c
Angle of detection
< 20 degee for 1 set
< 12 degree for 2 sets
Detection Method
RF signal based
Detection time
< 2 seconds
Database update
Every 1 year (chargeable)
Size (body only)
Diameter = 450 mm
Height = 900 mm

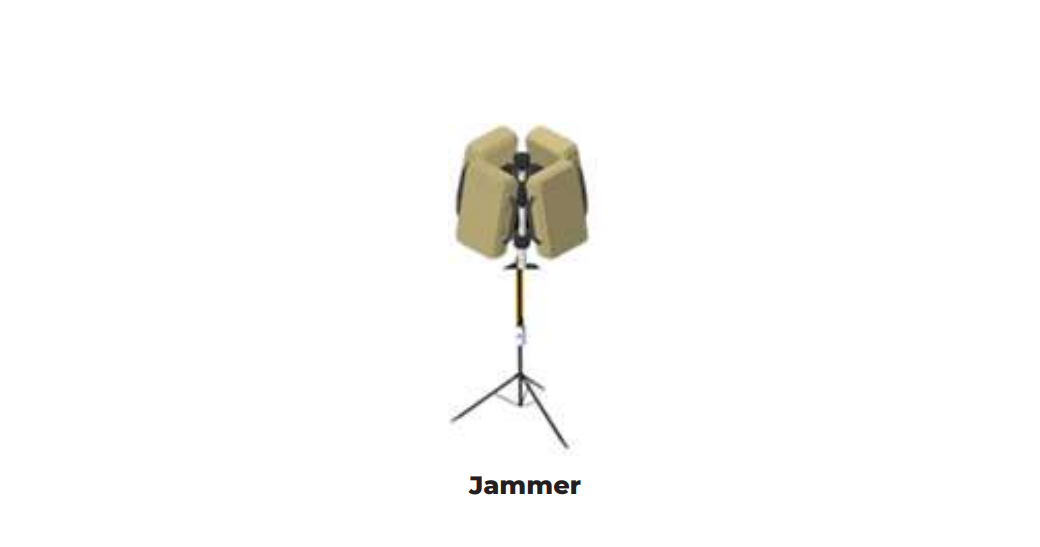

Directional Jammer

Technical Specification
PARAMETER
PERFORMANCE
Frequency Bands
GNSS L1/L
2.4G & 5.8G Hz ISM
400M & 900M Hz ISM
Jamming Range
5km ≥
Output Power
50 ~ 100W
Antenna Gain
Max. 9 dBi
Antenna Beam Width
30°~ 60° Directional
Antenna VSWR
Less than 2 : 1
Interface Output
Ethernet / RS-422
Operating Temperature
-32°c ~ 65°c
Ingress Protection
IP6

Portable Jammer

Technical Specification
PARAMETER
PERFORMANCE
Frequency Bands
GNSS L1/L2,
2.4G & 5.8G Hz ISM
(optional) 433M & 900M Hz
Channel Control
Each channnel ON/OFF,
respectively
Jamming Range
min. 500m
Output Power
50 ~ 100W
Antenna Gain
avr. 6 dBi
Antenna VSWR
max 2
Continuous Tx
over 1 hour with all channels ON
Weight
Ethernet / RS-422
Operating Temperature
6kg
IP rating
IP65

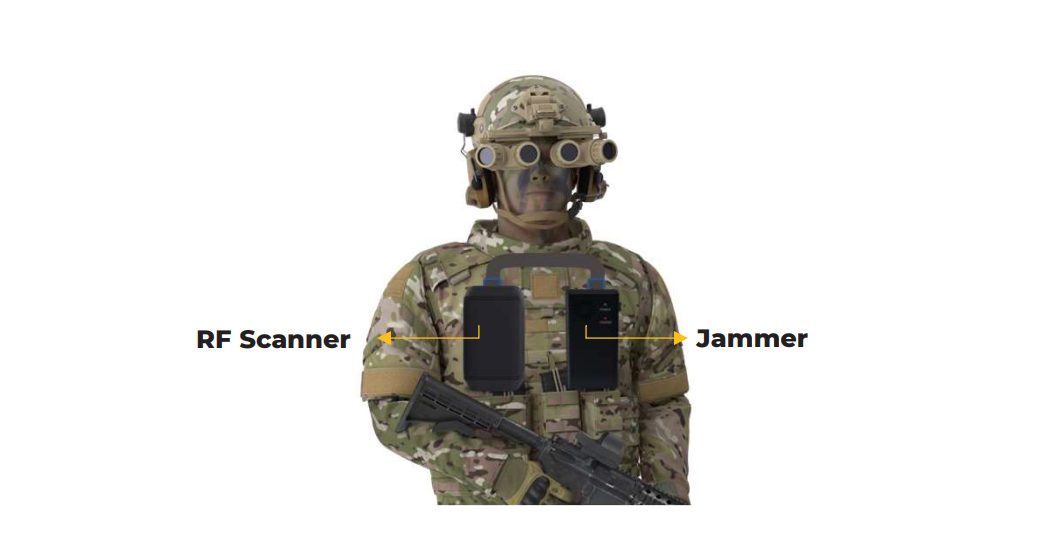

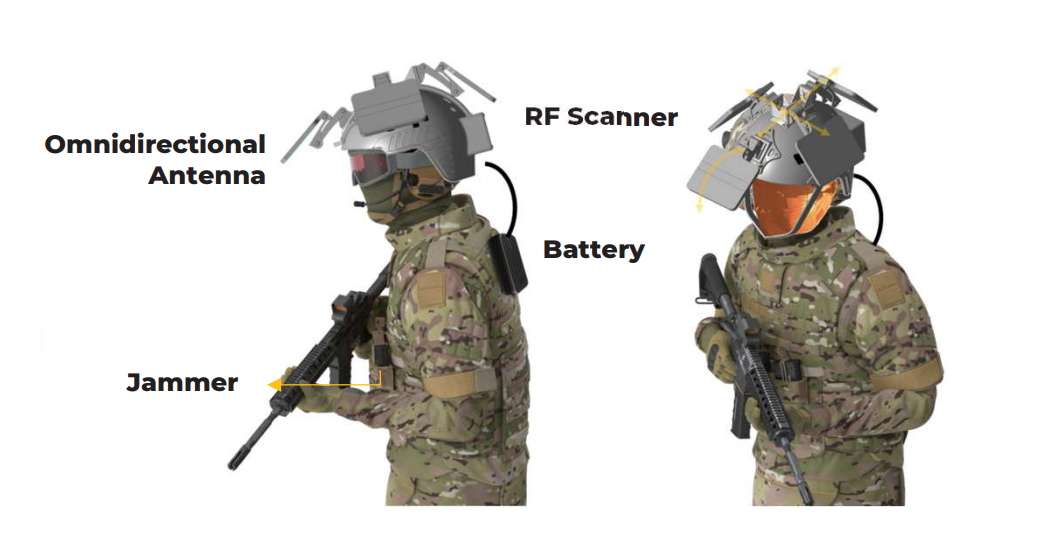

Wearable Anti-Drone System

Key Feature
Wearable Type 1

Wearable Type 2

Detecting drones within a 6 km range
across a 90-degree front-facing field.
Detecting drones and identifying their direction within a 6 km range
across a 360-degree forward field.
Disarming drones within a 1 km range
across a 90-degree front-facing field.
Disarming drones within a 1 km range
across a 90-degree front-facing field.
Tactical Network Interlocking

Portable & Wearable

Technical Specification

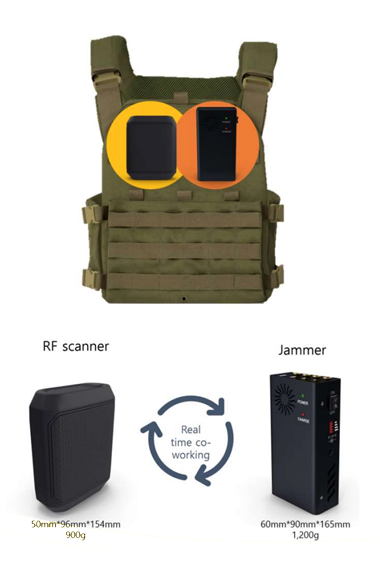

RF scanner
Jammer
Real time Co-working
Detection Range
2km ≥ @ open area
Detection Time
Less than 5 sec
Detection Frequency Band
2.4GHz, 5.2GH, 5.8GHz
Weight
900g (incl. battery)
Size (H x W x D)
150 x 90 x 50 mm
IP Rating
IP67
Battery
External type battery [Option]
Operating Temp
-32°C ~ +65°C
Alarm
Sound, LED letter, vibration
Library
Update every year
Frequency Band
2.4GHz, 5.2GHz, 5.8GHz ISM bands,
GNSS L1, L2
Jamming Distance
Max. 500m
Weight
1.1 kg (incl. battery)
Size (H x W x D)
160 x 90 x 60 mm
IP Rating
IP67
Battery
External type battery [Option]
Operating Time
Idle ≥ 20h, Transmitting ≥ 2h
Operating Temp.
-32°C to +65°C

Vehicle / Installation Type 3

Key Feature
Detecting drones and identifying their direction
within a 6 km range across a 360-degree forward field.
Disarming drones within a 8 km range
across a 360-degree front-facing field.
